Zelux® Family

Zelux® M

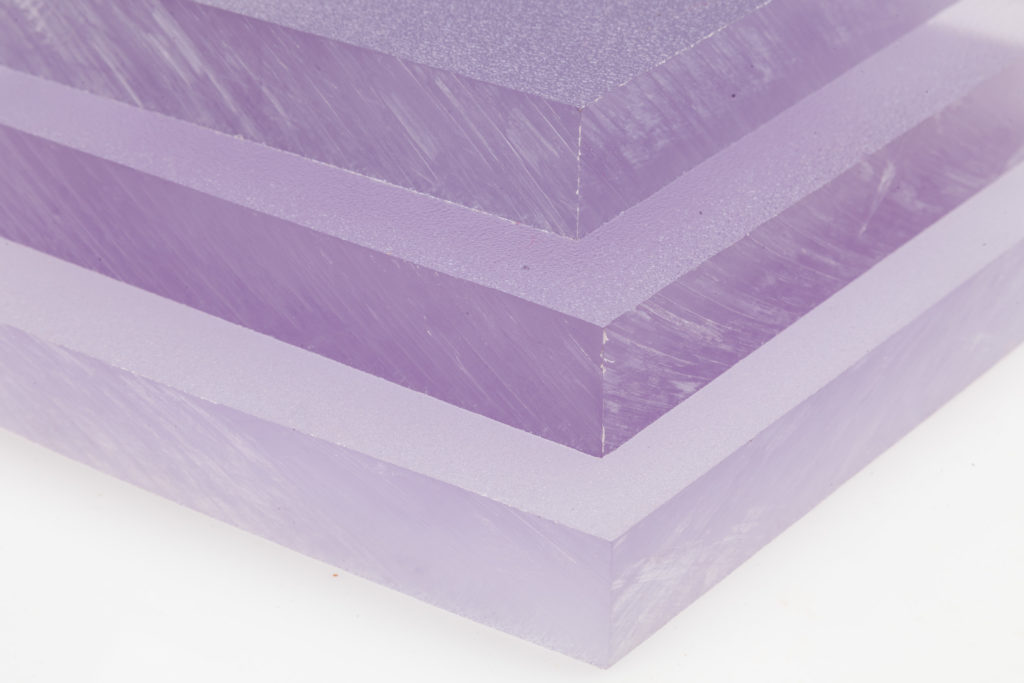

Zelux® M is Westlake Plastics machine grade polycarbonate (PC). Compression molded Zelux M is made from UV stabilized resin. Extruded Zelux M rods, sheets and film are made from resin that is suitable for use in certain types of food contact applications. Contact your local Westlake Plastics representative for specific regulatory declarations. Zelux M is an inherently transparent engineering thermoplastic offering excellent impact resistance, dimensional stability, strength, and rigidity. This material offers moderate heat resistance and good electrical insulating properties. Zelux® M is also easy to fabricate, paint, and glue.

Request Quote

Download Datasheet

Industry

Aerospace & Defense

Engineering

Food Processing

Semiconductor and ESD

Attributes

Shapes

Colors Available

Typical Properties

Download Data Sheet

Property	Test Standard	English Units	Metric Units
Mechanical
Flexural Modulus	D790	339 kpsi	2,340 MPa
Flexural Strength - Yield	D790	14 kpsi	97 MPa
Izod Impact Resistance - Notched	D256	16.99 ft-lb/in	907 J/m
Tensile Elongation @ Break	D638	135 %	135 %
Tensile Elongation @ Yield	D638	7 %	7 %
Tensile Modulus	D638	335 kpsi	2,310 MPa
Tensile Strength @ Break	D638	9.8 kpsi	68 MPa
Tensile Strength @ Yield	D638	8.9 kpsi	62 MPa
Thermal
HDT @ 264 psi	D648	288°F	142°C
HDT @ 64 psi	D648	293°F	145°C
Physical
Moisture Absorption	D570	0.15 %	0.15 %
Specific Gravity	D792	1.20	1.20
Electrical
Volume Resistivity	D257	1 x 10¹⁷ ohm-cm	1 x 10¹⁷ ohm-cm
*Data above is based on testing of injection molded test specimens
Other
Flammability Rating**	UL 94 (file number E240206)	V-0 @ 0.37 inches (natural and black)
**Results based on testing of machined test specimens

Rod Sizing

Sheet Sizing

Film Sizing

48"L

2.25" (57.15mm)

2.50" (63.5mm)

2.75" (69.85mm)

3" (76.2mm)

3.25" (82.55mm)

3.50" (88.9mm)

3.75" (95.25mm)

4" (101.6mm)

4.25" (107.95mm)

4.50" (114.3mm)

4.75" (120.65mm)

5" (127mm)

5.25" (133.35mm)

5.50" (139.7mm)

5.75" (146.05mm)

6" (152.4mm)

6.25" (158.75mm)

6.50" (165.1mm)

6.75" (171.45mm)

7" (177.8mm)

8" (203.2mm)

9" (228.6mm)

10" (254mm)

11" (279.4mm)

12" (304.8mm)

96"L

0.5" (12.7mm)

1" (25.4mm)

1.25" (31.75mm)

1.50" (38.1mm)

1.75" (44.45mm)

2" (50.8mm)

Slab Sizing

48"L x 24"W

0.5" (12.7mm)

0.75" (19.05mm)

1.0" (25.4mm)

1.25" (31.75mm)

1.5" (38.1mm)

2" (50.8mm)

2.5" (63.5mm)

3" (76.2mm)

Compression Sheet Sizing

96"L x 48"W

0.375" (9.53mm)

0.5" (12.7mm)

0.75" (19.05mm)

1" (25.4mm)

1.25" (31.75mm)

1.5" (38.1mm)

1.75" (44.45mm)

2" (50.8mm)

2.25" (57.15mm)

2.50" (63.5mm)

2.75" (69.85mm)

3" (76.2mm)

3.25" (82.55mm)

3.50" (88.9mm)

3.75" (95.25mm)

4" (101.6mm)

Extruded Sheet Sizing

24"L x 48"W

0.5" (12.7mm)

0.75" (19.05mm)

1.0" (25.4mm)

1.25" (31.75mm)

1.5" (38.1mm)

1.75" (44.45mm)

2.0" (50.8mm)

2.5" (63.5mm)

3.0" (76.2mm)

96"L x 48"W

0.030" (0.76mm)

0.060" (1.52mm)

0.080" (2.03mm)

0.125" (3.18mm)

0.250" (6.35mm)

Outlined below are the common gauges we produce.
Other gauges available, please call your Westlake Plastics Representative for details.

Roll Width: 26 in. +0.25 in/-0.00 in
Finish: Polish/Matte (P/M)
Gauge Tolerance: +/-10%
Standard Roll weight: 50 lbs.
Standard Core: 6" corrugated/fiber

26"W

0.002" (0.05mm)

0.005" (0.13mm)

0.010" (0.25mm)

0.020" (0.51mm)
