Absylux® CN-P - Westlake Plastics

Typical Properties

Property	Test Standard	English Units	Metric Units
Mechanical
Tensile Strength @ Yield	D638	4.5 kpsi	31 Mpa
Tensile Strength @ Break	D638	4.2 kpsi	29 Mpa
Tensile Elongation @ Yield	D638	2%	2%
Tensile Elongation @ Break	D638	6.4%	6.4%
Tensile Modulus	D638	346 kpsi	2386 Mpa
Flexural Strength	D790	8.6 kpsi	59.3 Mpa
Flexural Modulus	D790	359 kpsi	2475 Mpa
Izod Impact Resistance - Notched	D256	0.4 ft-lb/in	0.0018 kJ/m
Izod Impact Resistance - Unnotched	D4812	6.9 ft-lb/in	30.7 kJ/m
Thermal
HDT @ 64 psi	D648	201°F	94°C
HDT @ 264 psi	D648	176°F	80°C
Physical
Moisture Absorption	D570	0.22%	0.22%
Specific Gravity	D792	1.1	1.1
Electrical
Surface Resisitivty	D257	10³ - 10⁶ ohm/sq	10³ - 10⁶ ohm/sq
*Data above is based on testing of injection molded test specimens

Rod Sizing

Sheet Sizing

Film Sizing

48"L

2.5" (63.5mm)

2.75" (69.85mm)

3.0" (76.2mm)

96"L

0.5" (12.7mm)

0.625" (15.88mm)

0.75" (19.05mm)

1" (25.4mm)

1.25" (31.75mm)

1.375" (34.93mm)

1.5" (38.1mm)

1.625" (41.28mm)

1.75" (44.45mm)

1.875" (47.63mm)

2" (50.8mm)

Compression Sheet Sizing

48"L x 24"W

0.25" (6.35mm)

0.375" (9.53mm)

0.5" (12.7mm)

0.75" (19.05mm)

1.0" (25.4mm)

1.25" (31.75mm)

1.5" (38.1mm)

1.75" (44.45mm)

2.0" (50.8mm)

2.25" (57.15mm)

2.5" (63.5mm)

2.75" (69.85mm)

3.0" (76.2mm)

3.25" (82.55mm)

3.5" (88.9mm)

3.75" (95.25mm)

4.0" (101.6mm)

4.25" (107.95mm)

4.5" (114.3mm)

4.75" (120.65mm)

5.0" (127mm)

5.25" (133.35mm)

5.5" (139.7mm)

5.75" (146.05mm)

6.0" (152.4mm)

96"L x 48"W

0.25" (6.35mm)

0.5" (12.7mm)

0.75" (19.05mm)

1" (25.4mm)

1.25" (31.75mm)

1.5" (38.1mm)

1.75" (44.45mm)

2" (50.8mm)

2.25" (57.15mm)

2.50" (63.5mm)

2.75" (69.85mm)

3" (76.2mm)

3.25" (82.55mm)

3.50" (88.9mm)

3.75" (95.25mm)

4" (101.6mm)

4.25" (107.95mm)

4.50" (114.3mm)

4.75" (120.65mm)

5" (127mm)

5.25" (133.35mm)

5.50" (139.7mm)

5.75" (146.05mm)

6" (152.4mm)

120"L x 48"W

0.25" (6.35mm)

0.375" (9.53mm)

0.5" (12.7mm)

0.75" (19.05mm)

1" (25.4mm)

1.25" (31.75mm)

1.50" (38.1mm)

1.75" (44.45mm)

2" (50.8mm)

2.25" (57.15mm)

2.50" (63.5mm)

2.75" (69.85mm)

3" (76.2mm)

3.25" (82.55mm)

3.50" (88.9mm)

3.75" (95.25mm)

4" (101.6mm)

4.25" (107.95mm)

4.50" (114.3mm)

4.75" (120.65mm)

5" (127mm)

5.25" (133.35mm)

5.50" (139.7mm)

5.75" (146.05mm)

6" (152.4mm)

120"L x 60"W

0.25" (6.35mm)

0.375" (9.53mm)

0.5" (12.7mm)

0.75" (19.05mm)

1" (25.4mm)

1.25" (31.75mm)

1.50" (38.1mm)

1.75" (44.45mm)

2" (50.8mm)

2.25" (57.15mm)

2.50" (63.5mm)

2.75" (69.85mm)

3" (76.2mm)

3.25" (82.55mm)

3.50" (88.9mm)

3.75" (95.25mm)

4" (101.6mm)

4.25" (107.95mm)

4.50" (114.3mm)

4.75" (120.65mm)

5" (127mm)

5.25" (133.35mm)

5.50" (139.7mm)

5.75" (146.05mm)

6" (152.4mm)

Extruded Sheet Sizing

96"L x 48"W

0.03" (0.76mm)

0.035" (0.89mm)

0.06" (1.52mm)

0.062" (1.57mm)

0.08" (2.03mm)

0.09" (2.29mm)

0.095" (2.41mm)

0.125" (3.18mm)

0.1875" (4.76mm)

0.25" (6.35mm)

Outlined below are the common gauges we produce.
Other gauges available, please call your Westlake Plastics Representative for details.

Roll Width: 26 in. +0.25 in/0.00 in
Finish: Polish/Matte (P/M)
Gauge Tolerance: +/-10%
Standard Roll weight: 50 lbs.
Standard Core: 6" corrugated/fiber

26"W

0.002" (0.05mm)

0.005" (0.13mm)

0.010" (0.25mm)

0.020" (0.51mm)

0.025" (0.64mm)

Documentation

No documents found.

Similar Products

Non-standard (Made to Order)

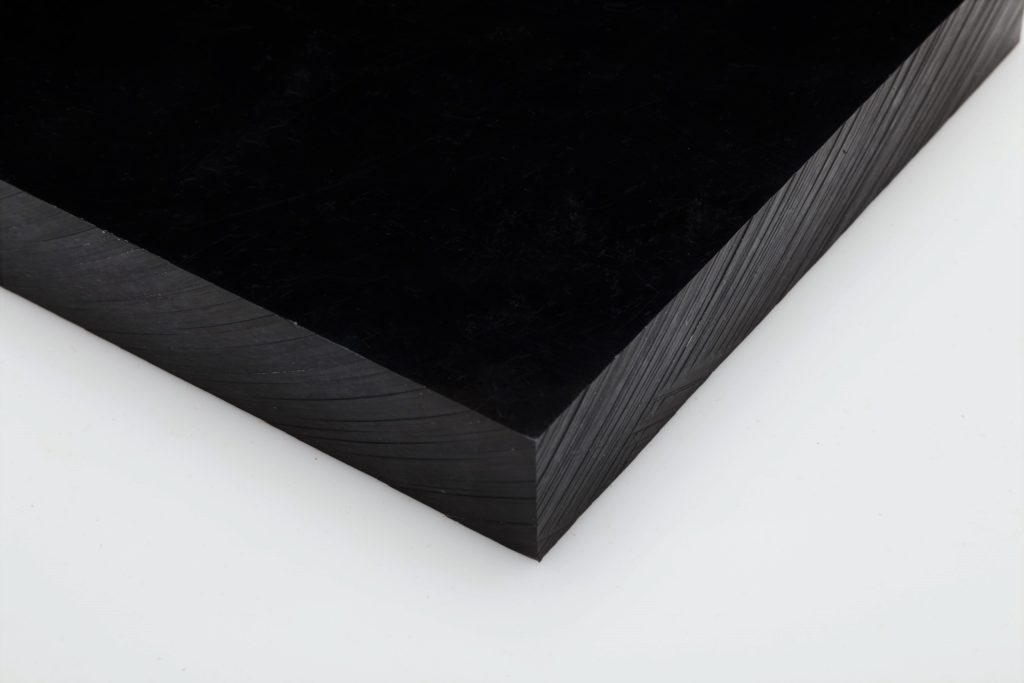

Absylux® FR
