Norylux™ Family

Norylux™

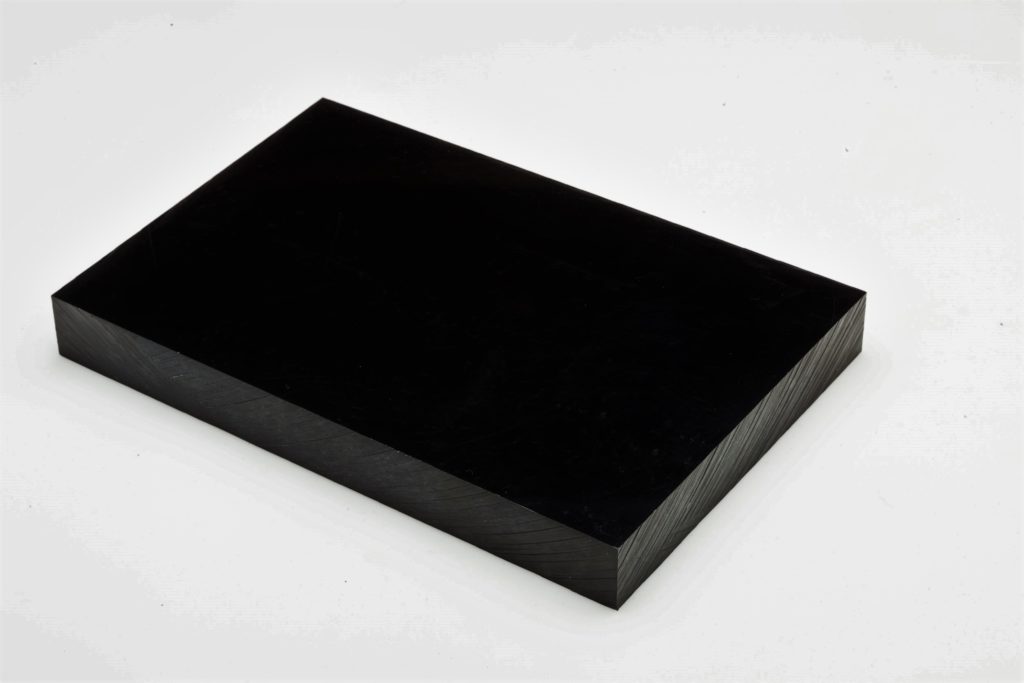

Norylux™ PPO modified Poly Phenylene Oxide is a high-strength, amorphous, engineering plastic with outstanding mechanical, thermal, and electrical properties. Low moisture absorption and low coefficient of thermal expansion make Norylux™ PPO one of the most dimensionally stable thermoplastics available. Norylux™ PPO is widely used for electrical housings and structural components since it has excellent insulating properties, flame resistance, strength and stiffness, and dimensional stability over a wide range of service temperatures. Norylux™ PPO is often selected for fluid handling applications since it has low moisture absorption and hydrolytic stability. Norylux™ PPO machines easily and may be fabricated into complex shapes with close tolerances. Norylux™ PPO is also easy to weld and glue, and it provides good adhesion to paints, inks, and other decorative coatings. Westlake Plastics extrudes and compression molds unfilled and flame-retardant products and compression molds glass reinforced and glass/mineral filled products.

Request Quote

Download Datasheet

Industry

Engineering

Semiconductor and ESD

Attributes

Shapes

Colors Available

Typical Properties

Download Data Sheet

Property	Test Standard	English Units	Metric Units
Mechanical
Flexural Modulus	D790	369 kpsi	2,550 MPa
Flexural Strength - Yield	D790	14 kpsi	99 MPa
Izod Impact, notched	D256	3.48 ft-lb/in	186 J/m
Tensile Elongation @ Yield	D638	25.00 %	25.00 %
Tensile Strength @ Yield	D638	9.1 kpsi	63 MPa
Thermal
HDT @ 264 psi	D648	253 °F	123 °C
Physical
Moisture Absorption	D570	0.07 %	0.07 %
Specific Gravity	D792	1.08	1.08

Rod Sizing

Sheet Sizing

Film Sizing

48" Length

0.5" (12.7mm)

0.625" (15.88mm)

0.75" (19.05mm)

0.875" (22.23mm)

1" (25.4mm)

1.25" (31.75mm)

1.375" (34.93mm)

1.5" (38.1mm)

1.625" (41.28mm)

1.75" (44.45mm)

1.875" (47.63mm)

2" (50.8mm)

2.25" (57.15mm)

2.50" (63.5mm)

2.75" (69.85mm)

3" (76.2mm)

3.25" (82.55mm)

3.50" (88.9mm)

3.75" (95.25mm)

4" (101.6mm)

4.25" (107.95mm)

4.50" (114.3mm)

4.75" (120.65mm)

5" (127mm)

96" Length

0.5" (12.7mm)

0.625" (15.88mm)

0.75" (19.05mm)

0.875" (22.23mm)

1" (25.4mm)

1.25" (31.75mm)

1.375" (34.93mm)

1.5" (38.1mm)

1.625" (41.28mm)

1.75" (44.45mm)

1.875" (47.63mm)

2" (50.8mm)

2.25" (57.15mm)

2.50" (63.5mm)

2.75" (69.85mm)

3" (76.2mm)

3.25" (82.55mm)

3.50" (88.9mm)

3.75" (95.25mm)

4" (101.6mm)

4.25" (107.95mm)

4.50" (114.3mm)

4.75" (120.65mm)

5" (127mm)

Compression Sheet Sizing

48" Length by 24" Width

0.25" (6.35mm)

0.375" (9.53mm)

0.5" (12.7mm)

0.75" (19.05mm)

1" (25.4mm)

1.25" (31.75mm)

1.5" (38.1mm)

1.75" (44.45mm)

2" (50.8mm)

2.25" (57.15mm)

2.50" (63.5mm)

2.75" (69.85mm)

3" (76.2mm)

3.25" (82.55mm)

3.50" (88.9mm)

3.75" (95.25mm)

4" (101.6mm)

4.25" (107.95mm)

4.50" (114.3mm)

4.75" (120.65mm)

5" (127mm)

5.25" (133.35mm)

5.50" (139.7mm)

5.75" (146.05mm)

6" (152.4mm)

96" Length by 48" Width

0.25" (6.35mm)

0.375" (9.53mm)

0.5" (12.7mm)

0.75" (19.05mm)

1" (25.4mm)

1.25" (31.75mm)

1.50" (38.1mm)

1.75" (44.45mm)

2" (50.8mm)

2.25" (57.15mm)

2.50" (63.5mm)

2.75" (69.85mm)

3" (76.2mm)

3.25" (82.55mm)

3.50" (88.9mm)

3.75" (95.25mm)

4" (101.6mm)

4.25" (107.95mm)

4.50" (114.3mm)

4.75" (120.65mm)

5" (127mm)

5.25" (133.35mm)

5.50" (139.7mm)

5.75" (146.05mm)

6" (152.4mm)

120" Length by 48" Width

0.25" (6.35mm)

0.375" (9.53mm)

0.5" (12.7mm)

0.75" (19.05mm)

1" (25.4mm)

1.25" (31.75mm)

1.50" (38.1mm)

1.75" (44.45mm)

2" (50.8mm)

2.25" (57.15mm)

2.50" (63.5mm)

2.75" (69.85mm)

3" (76.2mm)

3.25" (82.55mm)

3.50" (88.9mm)

3.75" (95.25mm)

4" (101.6mm)

120" Length by 60" Width

0.25" (6.35mm)

0.375" (9.53mm)

0.5" (12.7mm)

0.75" (19.05mm)

1" (25.4mm)

1.25" (31.75mm)

1.50" (38.1mm)

1.75" (44.45mm)

2" (50.8mm)

2.25" (57.15mm)

2.50" (63.5mm)

2.75" (69.85mm)

3" (76.2mm)

3.25" (82.55mm)

3.50" (88.9mm)

3.75" (95.25mm)

4" (101.6mm)

Extruded Sheet Sizing

96" Length by 48" Width

0.03" (0.76mm)

0.035" (0.89mm)

0.06" (1.52mm)

0.062" (1.57mm)

0.08" (2.03mm)

0.09" (2.29mm)

0.095" (2.41mm)

0.125" (3.18mm)

0.1875" (4.76mm)

0.25" (6.35mm)

26" Width

0.002" (0.05mm)

0.003" (0.08mm)

0.004" (0.1mm)

0.005" (0.13mm)

0.01" (0.25mm)

0.02" (0.51mm)
